"德龙激光"紫外激光打标机：紫外激光第一品牌
2013-05-30 20:50:40 来源：微迷 评论：0 点击：
德龙激光公司生产的紫外激光打标/紫外镭射雕刻机/紫外激光标记设备，适用于手机、平板等消费类电子的手机盖、触摸屏、平板后壳、白色塑胶、镁铝合金、数据线、电源壳、电子芯片（含MEMS芯片）打标，价格最低，品质最好，买紫外打标机，请选德龙激光。
「八年铸造卓越品质」：最低价格、最好品质
德龙激光为中澳合资企业,致力于生产高端紫外激光打标机，广泛应用于消费类电子领域，特别适用于手机、平板等行业的配件打标，如手机盖、触摸屏、平板后壳、白色塑胶、镁铝合金、数据线、电源壳、电子芯片（含MEMS芯片），价格最低，品质最好，买紫外打标机，请选德龙激光。
德龙激光公司生产的DL-TI-UV3型紫外激光打标机，适用于手机、平板等消费类电子的手机盖、触摸屏、平板后壳、白色塑胶、镁铝合金、数据线、连接器、电源壳、窗口镜、电子芯片（含MEMS芯片）打标，具有精细、微型、灵活等特点，致力于苹果，三星手机等一线品牌的产品标记，深得世界五百强企业认可。
UV laser marking machine (Model: DL-TI-UV3) from Delphi Laser is used in industries like mobile phone ,Pad (tablet) and related parts ,Such as mobile phone shell, touch panel, tablet shells, white mold construction, alloy alumina, data cable, connector, mobile phone charger, glass windows, electronics chips(MEMS) etc, Our focus is first class laser markers with “Very small, Ultra fine, More flexible”, which have been well received by Fortune 500 companies, such as apple and Samsung suppliers.
更多产品详情，请点击下载："德龙激光"紫外激光打标机
买紫外打标机，选德龙激光。给您最低的价格，最好的品质。

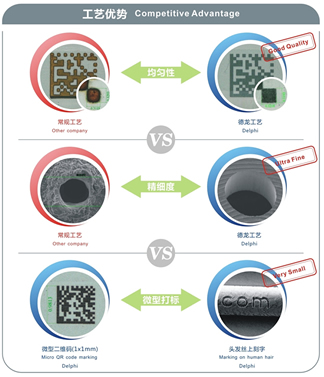

1 德龙激光优势（Advantage From Delphi Laser）
1) 价格优惠
• Hot Price
• Joint venture enterprise, leading products technologies, Good Quality
3) 控制精密，字符精细
• High resolution，Precise control
4) 均匀性好，且便于识别
• Good quality and easy to identify
5) 人机界面，操作简单，打标快速
• Friendly UI and Easy operation, fast mark
6) 使用寿命长，维修少，运行成本低
• Long usage life，Low maintenance and running cost
2 产品规格（Specification）
| 项目（Item） | 规格（Specification） |
|
加工能力
Working Capacity
|
幅面（Marking Field ）: 50*50mm(2inch)-500*500mm(20inch)
精度（Accuracy）: 0.02mm
最小字符尺寸（Size min）: 0.1mm
分辨率（Resolution）:200-1500dpi
打印速度（Marking Speed）:>7000mm/s
|
|
打标内容
Marking
|
内容: 字母，条形码，二维码，图片，CAD
Content: letter, barcode, 2D code , jpg ,bmp , dwg , dxf |
|
激光
Laser
|
紫外激光器，波长355nm
UV laser, Wavelength 355nm
|
|
安装需求
Facility requirement
|
电源（Power supply）: 220V AC/ 50HZ / 16A
|
3 激光打标系统综述（Laser Marking system Overview）
3.1 为什么需要标记（why mark）?
(1) 品牌塑造：品牌雕刻
• Brand building：Logo
(2) 指示标记：名称、位置、日期
• Identification: Item, Position, Date
(3) 产品追溯，符合ISO标准：来料追溯、生产追溯、售后追溯
• Traceability of industrial products with ISO standards: Traceability of materials, manufacture, Traceability of after-sales
3.2 为什么选择激光打标（why laser marking）?
(1) 标记具有永久性，防伪性
• Permanent ,Counterfeit-proof
(2) 清洁，环保，不使用染料等化学原料
• Clean ,no pollution , no chemical
(3) 图形任意，支持任意图形导入，不限于日期，字母，二维码
• High versatility ,Such as logo , date ,series No. ,letter , 2D matrix code and barcode ,image, and any other customized content
3.3 打标机工作原理（Principle of laser marking）
激光器发出脉冲激光，经过光路整形系统后投射到扫描振镜的反射镜片，再由计算机根据标记内容控制振镜快速转动，使激光在X、Y 方向扫描，从而在工件表面或内部形成所需文字和图形,可进行平面二维打标和三维打标。
• A laser beam that is generated from a laser source ,is directed to mirror of scan head by beam shaping and transmission system ,then letter and customized information will be formed by reaction induced inside materials with computer, for 2D or 3D laser marking.
关于德龙激光
苏州德龙激光股份有限公司位于苏州工业园区，由中、澳两方投资创立，致力于研发、生产和销售各类高端工业应用激光设备，尤其是基于紫外激光和超短脉冲激光技术的设备。这些产品已广泛应用于手机、电脑（平板）、触摸屏、塑胶模具、航天航空、军工、半导体、MEMS等领域、涉及激光打标、激光切割、激光刻蚀、激光钻孔。
激光打标机系列以“微型、精细、灵活”为特点，获得世界500强客户的好评，拥有超5000平方米洁净实验室，可自主研发生产高端激光器等核心部件，技术领先，已经建成紫外激光实验室，光纤激光实验室，超短脉冲（皮秒）激光实验室。
德龙激光立足高端，以科学的管理，领先的技术，标准化的生产，优异的服务和良好的信誉为基础，立志成为具有全面自主知识产权和强大核心竞争力的国际型公司。
欢迎您选购德龙激光生产的紫外激光打标机（紫外镭射雕刻机/紫外激光标记设备），联系方式如下：
苏州德龙激光股份有限公司
联系人：陈洁
手机：18606217061
直线：0512-65079598
总机：0512-65079666
邮箱：j.chen@delphilaser.com
主页：http://www.delphilaser.com
地址：苏州工业园区杏林街98号
About Delphi Laser ：
Suzhou Delphi Laser Co., Ltd is a joint venture funded by investments from Australia and China. We are devoted to the development, manufacturing and marketing of high-end laser systems, especially, the systems employing UV and Ultra-fast lasers for applications in Mobile phone, PC(Tablet), Touch Panel industrials, Aerospace, Defense, Semiconductor and MEMS, For example : laser marking, laser annealing, laser ablation ,laser drilling, laser cutting, as well as laser micromachining.
Our focus is first class laser markers with “Very small, Ultra fine, More flexible”, which have been well received by Fortune 500 companies. Also, Delphi Laser occupies a space of over 5,000 square meters with clean rooms for R&D laboratories, including UV laser lab, fiber laser lab and ultra-short pulse (ps) laser lab.
With professional management, leading products technologies, standardized production, excellent services and good reputation, Delphi Laser is determined to become a international company with completely independent intellectual properties and strong core competencies.
UV Laser Marking Machine From Delphi Laser ：
Especially used in industries like mobile phone ,Pad (tablet) and related parts ,Such as mobile phone shell, keyboards, touch panel, glass windows, data cable, connector, mobile phone charger, mold construction etc, Specially used for marking on ultra-hard materials such as sapphire wafer, quartz, ceramics, glass, etc.
Contact :
Contact : Edmund Chen
MP: 18606217061
TEL： 0512-65079598/0512-65079666
E-mail：j.chen@delphilaser.com
Website：http://www.delphilaser.com
Add: No.98 Xinglin Street, SIP, Suzhou 215000,China

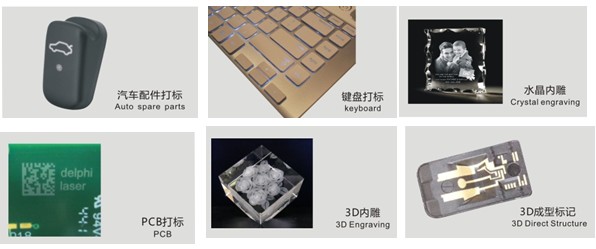

更多打标样品：
More laser marking samples:
更多打标/镭射产品:

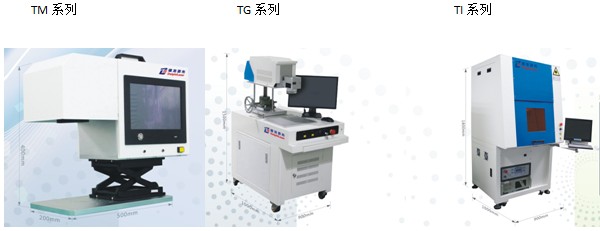

More laser marking machine
深圳办事处:
地址: 龙华镇锦绣江南三期7栋
华南重点客户服务点:
1、深圳石岩，2、东莞塘厦
