±4g量程3轴加速度计DMARD10-利顺精密
2013-01-08 07:55:27 来源:微迷 评论:0 点击:
为了符合移动设备低功耗需求,该加速度计拥有低功耗模式和自动唤醒功能。具体功耗情况如下:
100Hz ODR时典型功耗为:140uA@3.3V
Standby模式的功耗:8uA
DMARD10特征:
* Tri-axial digital accelerometer with ±4g dynamic range
* 10 bit ADC embedded with I2C digital interface supporting 400kHz high-speed mode
* Flexible sampling rate from below 1 to 100Hz
* Temperature sensor for internal compensation and capable of digital output
* Low operation voltage from +1.8V to +3.6V with interface voltage from +1.8V to +3.3V
* Power consumption for normal mode: 100Hz ODR typical 140uA@3.3V; for standby mode:typical 8uA
* Special low-power mode with current consumption below 60uA
* One interrupt pin as the data-ready signal with selectable polarity and open-drain option
* Build-in low-pass decimation filter with maximum tap number of 32
* 5000g shock tolerance

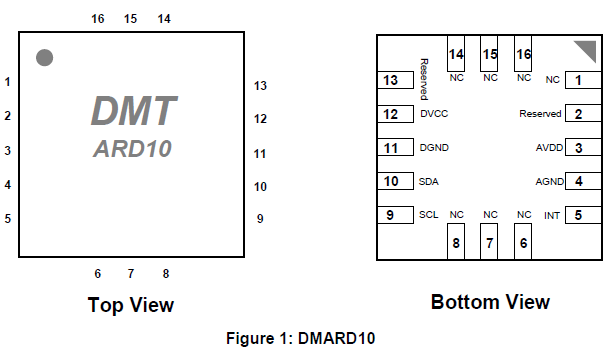

* 16-pin LGA package with RoHS compliance and lead-free.
* Footprint 3mm×3mm, height 1mm
联系人:王女士
电话:13927460015
